Model：JXMF-12
Brand：Shanghai Jingxin
Specifications ：
Introduction：Product introduction: The Main Engine uses mechanical kinetic energy to break the hair within 3 minutes, so that the drugs in the hair can be protected from the stratum corneum and dissolve in the dissolving liquid.

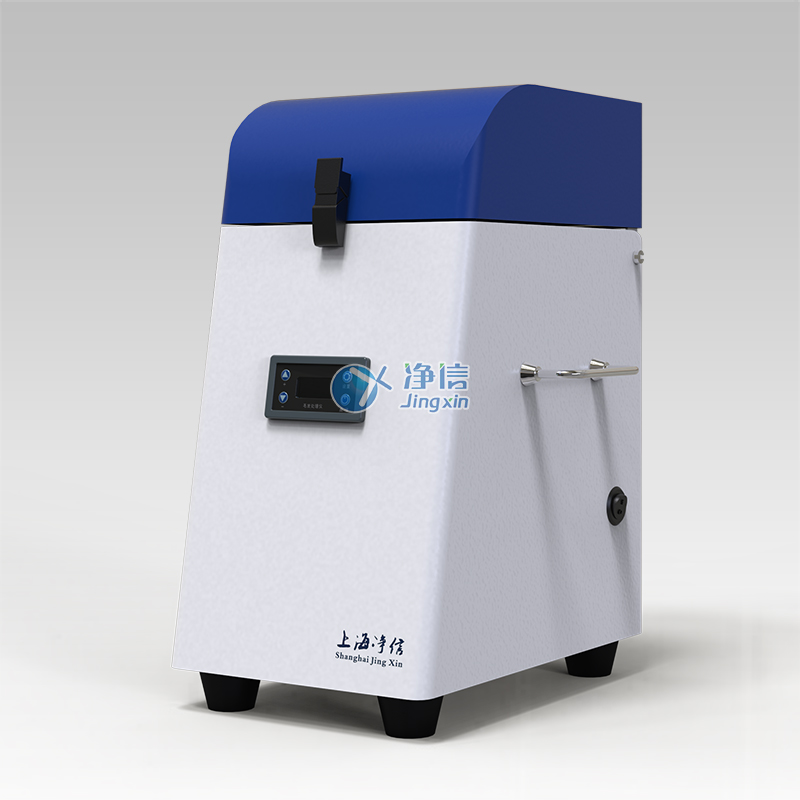

Product Description: JXMF-12 hair grinder (patented product, counterfeiting will be punished! ZL2020300622538)
Main working principle:
1. The hair grinder is not only suitable for fine grinding and fine grinding of hard, medium-hard and brittle samples, but also for soft, elastic and fibrous materials.
2. This machine performs three-dimensional vibration in the horizontal direction. The inertia of the grinding balls/beads drives them to hit the sample material on the inner surface of the arc with high energy, so as to achieve the effect of crushing and grinding.
3. The movement of the adapter can be superimposed with the movement of the inner ball to fully mix the sample. The mixing effect can be further improved by using multiple small-diameter grinding balls.
4. Using multiple small-diameter grinding balls during grinding can greatly improve the grinding effect. The huge impact and friction between the ball and the ball can effectively achieve the fragmentation of the sample.
Main Engine function:
The Main Engine uses mechanical kinetic energy to break the hair within 3 minutes, so that the drugs in the hair can be protected from the stratum corneum and dissolved in the dissolving liquid.
Test items:
It is suitable for the detection of morphine, methamphetamine, ketamine, cannabis, etc. and their metabolites in human hair.
Working environment conditions:
(1) Working voltage: 220-240V, single-phase;
(2) Power interface: 220/240VAC, 50/60Hz;
(3) Working temperature: -10℃～50℃;
(4) Relative humidity: 10% to 90%.
1. Very powerful stirring, pyrolysis, grinding or homogenization;
2. Fast and efficient;
3. It can grind 1-12 samples at the same time;
4. Compact and small;
5. Compared with hand-held tissue homogenizer, it eliminates cross-contamination;
6. Digital display, time can be adjusted arbitrarily;
7. Press the inverted "8" shape to cyclically operate, and the chuck is an effective automatic trivial tightening device;
8. There are two choices of metal clip and plastic clip, customers can choose according to the experimental conditions;
9. Safety design, when the mask is opened during work, the machine stops working to ensure safe operation;
10. Meet the ergonomic design;
11. There is almost no noise, automatic alarm reminder;
12. Easy to operate, easy to maintain, and evenly oscillate.
Technical parameter:
Main parameters | Parameter range |
Mode: | Adopt shaft drive to oscillate back and forth at high speed; |
Fragmentation effect: | Hair fragmentation reaches the micron level; |
Processing time: | Less than 200 seconds |
Operating speed: | Less than 70Hz |
High-throughput sample processing mode: | Grinding of 1-12 samples can be processed at the same time. Can carry out on-site rapid detection; |
Maximum input power: | 0.375kW； |
Noise: | ≤55 dB； |
Storage temperature: | 0℃~40℃； |
Display interface: | OLED≥4 inches; |
Safety function: | The lid is equipped with a built-in safety lock, and the instrument cannot be operated when it is opened, thereby ensuring safe operation; the lid has a sound-proof, dust-proof and shock-proof protective layer; |
Voltage: | AC 220±20V,50HZ； |
Power: | 60W； |
Speed: | 2800 rpm～6000 rpm; |
Timing range: | arbitrarily set according to experimental requirements; |
Weight | 20kg； |
Hair testing kit: special testing consumables for hair (triple card), hair testing consumables (five card).
Hair grinding effect picture:
