Model：Tissuelyser-600
Brand：Shanghai Jingxin
Specifications ：Set
Introduction：Application fields: Widely used in various industries such as biomedicine, agriculture, geology, forensic medicine, food, metallurgy, chemical industry, RoHS, toys, environment, quality inspection, universities and so on.
Product Description:

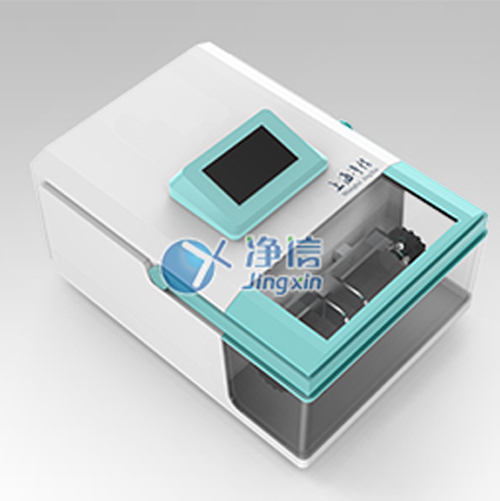

Tissuelyser-600 is a veritable laboratory multi-functional and high-efficiency sample preparation instrument, which is a new product specially launched for "small samples". The grinder can perform fast and effective dry or wet grinding of hard, soft, and elastic samples within 1-3 minutes, and can also achieve the purpose of mixing and homogenizing powder and turbid liquids, and can also perform biological cells Fragmentation and DNA/RNA extraction.
Low-temperature liquid nitrogen freezing grinding can also be carried out. The heat-sensitive and elastic materials can be successfully ground by pre-freezing the sample and the grinding tank. The sample and the JINXING grinding kit are immersed in liquid nitrogen, and the grinding tank is quickly fixed to start grinding after being fully frozen.
Application fields:
Widely used in various industries such as biomedicine, agriculture, geology, forensic medicine, food, metallurgy, chemical industry, RoHS, toys, environment, quality inspection, universities and so on.
Main advantages:
It can process 2-48 samples at a time, and the maximum capacity can be 6*100ML 8*50ML
To avoid cross-contamination, disposable grinding tubes can be used to avoid cleaning troubles
Strong versatility, can grind soil/process animal and plant samples/freeze plastic products
technical parameter:
Main parameters | Parameter range |
Speed | 0-40hz |
Maximum sample size | ≤10mm |
Maximum processing capacity | 8*50ml/6*100ml |
Final output particle size | ~5um |
Amount of samples processed (pieces) | 2-48 |
Capacity specification | 6*100ml/8*50ml |
Number of grinding platforms (the number of grinding tanks that can be accommodated) | 2 |
Vibration frequency setting 10-2100 times/min | 10-2100次/分鐘 |
Typical crushing time 2min | 2min |
Dry grinding | 是Yes |
Wet grinding | Yes |
Cryogenic grinding | Yes |
Fastening device with automatic centering | Yes |
Grinding tank type | screw cap grinding tank |
Grinding kit material: | hard rigid Teflon |
Grinding tank size | 2ml/5ml/25ml/50ml/100ml |
Crushing time setting digital display | 1 second—99 minutes 59 seconds |
Drive | brushless motor |
power | 150W |
size (width X height X depth) | 300x180x420mm |
Net weight: | ~26kg |

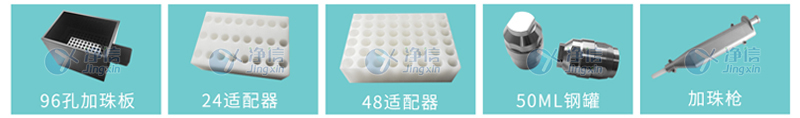

Product acessories:
Grinding effect :
