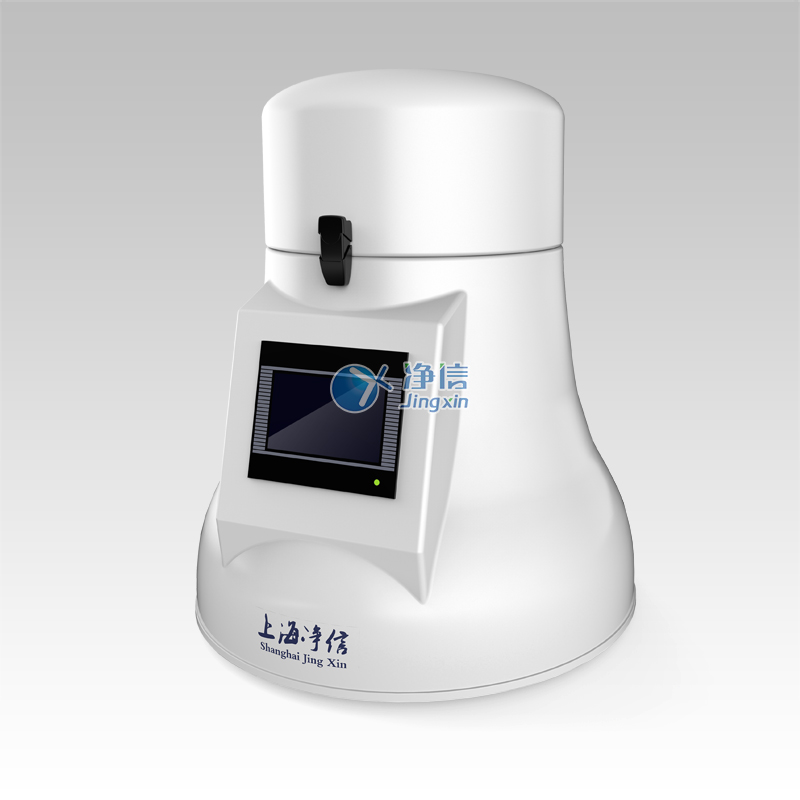

XM-GTL64 high-throughput tissue grinder (patented product, counterfeiting must be investigated! ZL2018300207398) is a new product specially designed by our company according to the requirements of market users. The product adopts microcomputer software control program; the parameter setting is simple and intuitive, and the operation is stable.
The XM-GTL64 high-throughput tissue grinder can quickly and efficiently grind 92 samples in a single tube of 0.2-0.5ml in 3 minutes. It can be dry milled, wet milled, mixed and homogenized. For the extraction of nucleic acids in high-throughput samples, the grinding efficiency and quality can be greatly improved. In the grinding process of the high-throughput tissue grinder, a closed disposable centrifuge tube is used, which effectively avoids cross-contamination of samples. By setting the same grinding program for the same tissue sample, the same grinding efficiency can be obtained, which improves the repeatability between samples. Because the grinding ball is used for grinding, the grinding of the sample is more uniform and sufficient than the traditional grinding method. Using a high-throughput tissue grinder, it can also be used as a homogenizer, using stainless steel balls or high-density glass beads or zirconia beads to quickly disperse the sample, the sample temperature will not rise during grinding and homogenization, and the speed can be adjusted.
Main Specifications:
The main parameters | Parameter range |
Rated voltage: | 220V AC/50/60Hz; |
Rated power: | 120W |
Speed setting | 300-2200 rpm (when the speed is set at 300-1000 rpm, there is a larger resonance point, and after repeated tests by the company's researchers and feedback from users, there is no crushing effect below 1000 rpm, it is recommended The user sets the speed within 1000-2000 rpm.) |
Timing: | 0-9999 minutes. |
Clamp stroke: | 32mm (vertical) |
Adapter: | Standard: 1-2ml 50 wells, 5ml 24 wells each Optional: 0.2-0.5ml single tube with 92 holes, Optional: stainless steel grinding jars 10ml, 15ml, 20ml, 50ml each group of 2 (the same specification can be placed 2 at the same time); 1 100ml stainless steel grinding jar. |
Dimensions: | 340*400*560 |
Configuration: | 316 stainless steel beads 3mm, 4mm each 100 (zirconia balls are optional) |
