一. Basic introduction:

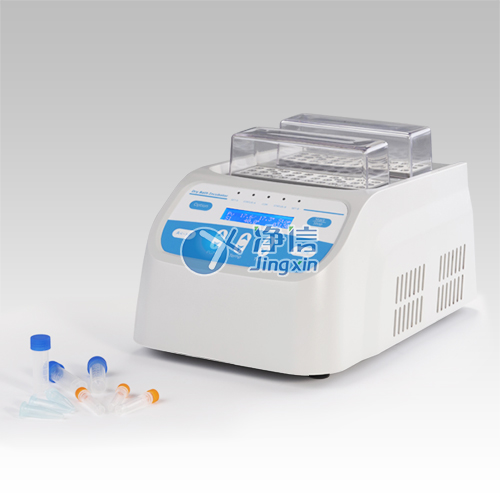

The JXB-4 dry thermostat is a sample constant temperature incubation equipment designed based on thin film heating and PID automatic temperature control technology. Flexible timing, constant temperature and dual-zone independent temperature control technology can effectively improve laboratory work efficiency. It is an ideal equipment for various sample incubation, catalysis and preservation reactions.
二. Product features:
1. The simple and easy-to-use man-machine operation interface displays all operating information and setting information in real time, which is convenient for users to observe the operating status of the equipment.
2. Dual zone temperature control can realize independent operation or simultaneous operation.
3. The same operation interface can realize dual-zone temperature and time independent or simultaneous control, and the operation is simple and convenient.
4. A variety of modules for users to choose, can also be customized according to customer requirements.
5. Built-in software and hardware dual over-temperature protection devices, multiple safety protections, to ensure the stability of long-term operation and safety under unattended conditions, in line with CE standards.
6. Support automatic preheating function.
7. Support auto-run function after booting.
8. Support automatic recovery function after power failure.
9. Automatic fault detection and buzzer alarm function.
10. Comes with temperature calibration function.
三. Application areas:
1. Laboratories of various universities: suitable for sample preservation and reaction;
2. Medical chemistry laboratory: pre-denaturation of DNA amplification and electrophoresis;
3. Biological research laboratory: serum coagulation, etc.
product parameters：
Main parameters | Parameter range |
Temperature setting range | 0℃~100℃ |
Temperature control range | Room temperature +5C~100 |
time setting | 1min ~ 99h59min/∞ |
Temperature control accuracy | ≤±0.3℃（@37℃） |
Display accuracy | 0.1℃ |
Temperature uniformity | ≤±0.3℃（@37℃） |
Heating time | ≤15 minutes (25°C to 100°C) |
Automatic preheating | support |
Automatically run on startup | support |
Automatic recovery after power failure | support |
Temperature zone | 2 |
Module capacity | 4 |
Maximum power | 240W |
Voltage specifications | AC110或 or 220V/50-60HZ |
Fuse | 250V 3A Ф5×20 |
size | 370*254*217（mm） |
weight | 5KG |
