Model：80328 10812
Brand：ibidi
Specifications ：10 (individually packed)

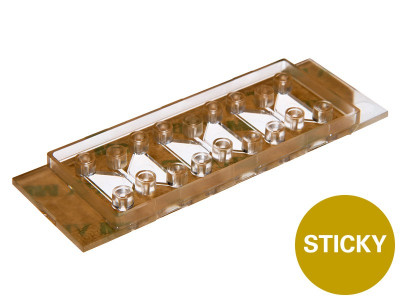

Introduction：A chemotaxis bottomless slide used in 2D and 3D applications with a self-adhesive underside designed to allow self-assemblage of the slide setup Versatile – i.e., permits the mounting of a variety of bottom materials
Applications:
Inserting materials or tissue into chemotaxis chambers
Keeping cell spheroids or tissue in a stable concentration gradient
Chemotaxis of fast or slow migrating cells on either a 2D surface or in 3D gels
Usable with a range of bottom materials, such as plastic sheets, silicon chips, and glass slides
Specifications:
| Outer dimensions (w x l) | 25.5 x 75.5 mm2 |
| Chemotaxis chambers on slide | 3 |
| Volume per chamber | 130 μl |
| Observation area | 2 x 1 mm2 |
| Height of reservoirs | 1.05 mm |
| Total height with plugs | 12 mm |
| Volume chemoattractant | 30 μl |
| Bottom | none |
Technical Features:
Bottomless slide
Self-adhesive underside
Biocompatible adhesive that has been cell culture tested
Adheres to all flat surfaces, even wet surfaces
Suitable coverslips available
Specifications identical to those of the μ-Slide Chemotaxis, except that it has no bottom

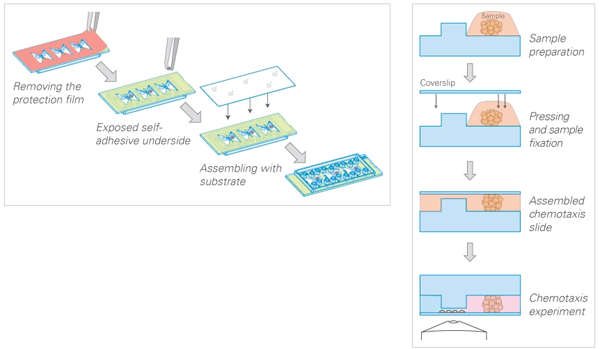

Placing Tissue Sample in the sticky-Slide Chemotaxis

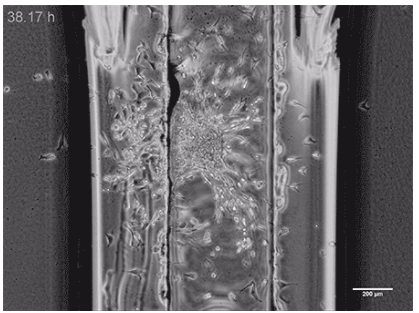

Application Example: Directed Invasion of MCF-7 Cancer Cells in an FCS Gradient
This movie shows the invasion of MCF-7 cancer cells into a collagen gel during 48 hours. The center channel of a sticky-Slide Chemotaxis was increased in height by milling in order to position the MCF-7 spheroid. The left side contains 10% fetal calf serum, the right side is serum-free. Phase contrast microscopy, objective lens 4x.

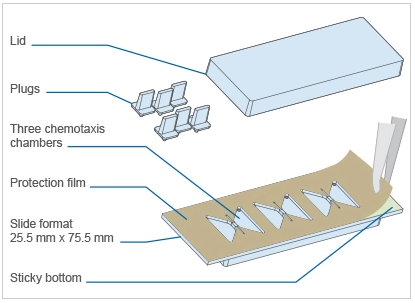

Technical Drawing
Technical drawings and details are available in the Instructions (PDF).
